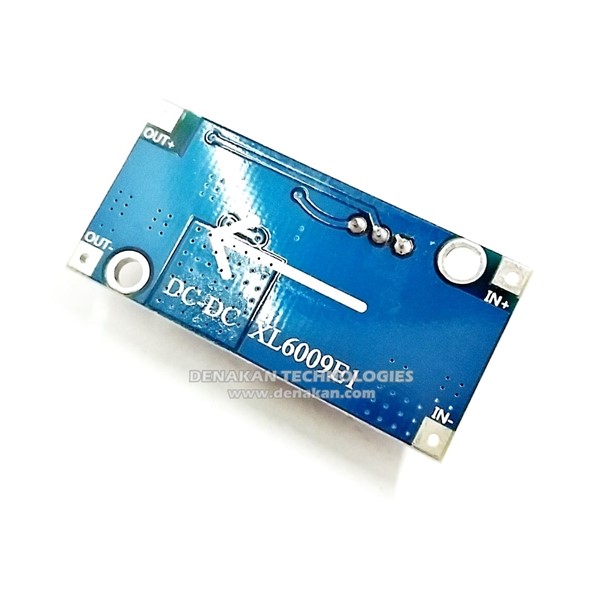

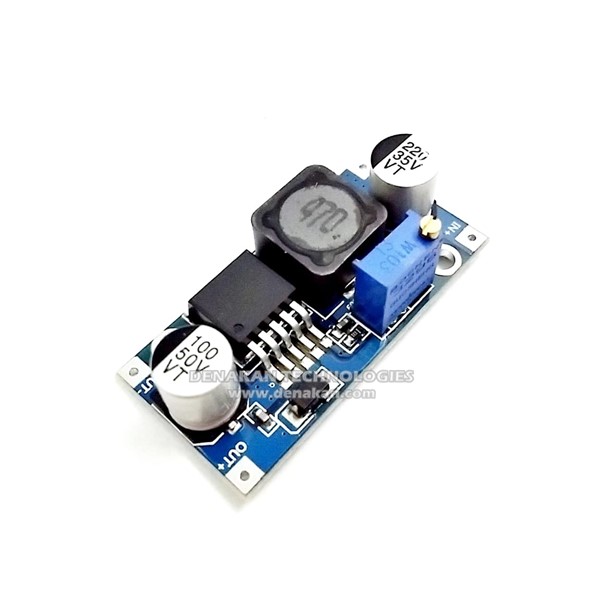

XL6009 Boost Converter Module

Description This is a 4A switch current high performance BOOST module which can step up the lower voltage to a higher values. This module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, and its performance far exceeds that of the first-generation technology LM2577. Key features: ? Ultra-wide input voltage 3V~32V , the best working voltage range is 5~32V ; ? Super wide output voltage 5V~35V ; ? Built-in 4A high-efficiency MOSFET switch tube, making the efficiency up to 94% ? Ultra-high switching frequency 400KHz , you can achieve very good results with a small-capacity filter capacitor, the ripple is smaller and the volume is smaller.
