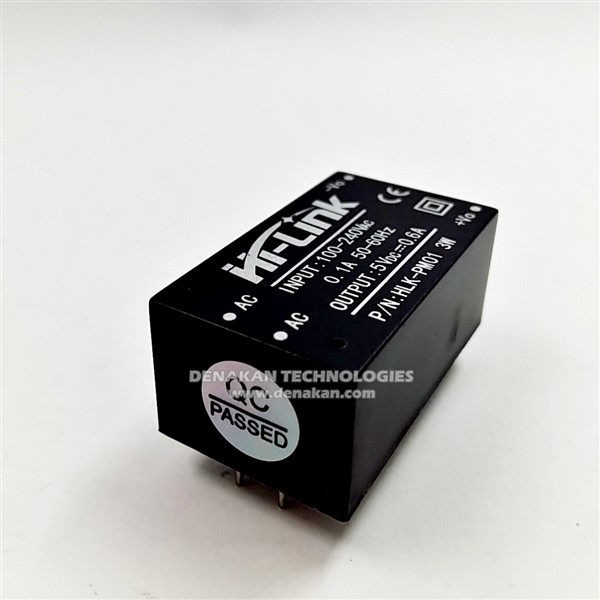

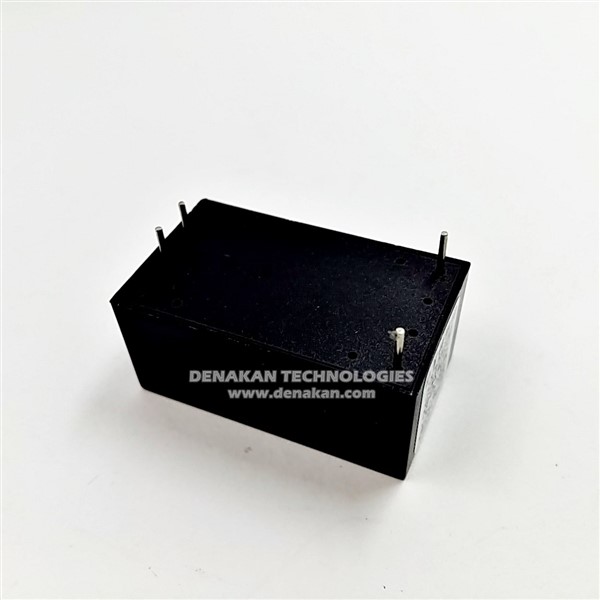

HLK-PM01 220VAC to 5VDC Converter

Description Features: HLKPM01 is commonly used in places where a microcontroller circuit has to be powered directly from AC mains. This module can convert the AC mains to 5V Meet UL, CE requirements Ultra-thin, ultra-small Low ripple and low noise Output overload and short circuit protection High efficiency, high power density The product is designed to meet the requirements of EMC and Safety Test Low power consumption, environmental protection, no-load loss <0.1W Electrical Characteristics: Rated input voltage: 100-240 VAC Input voltage range: 90-264 VAC Maximum input voltage: 270 VAC Enter slow start: ?50 ms Load rated output voltage: 5VDC Full rated output voltage: 5VDC Output ripple and noise (mVp-p): ?50 mV Rated input voltage, full load. Using 20MHz of bandwidth, The load side 10uF and 0.1uF capacitor to be tested. Safety Characteristics: Designed with the input of 0.5A UL certified insurance PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level Applications: Home Automation products IoT Devices Security systems Power modules Package include: 1* HLK-PM12 AC-DC 220V to 12V Ultra Compact Power Supply Module
